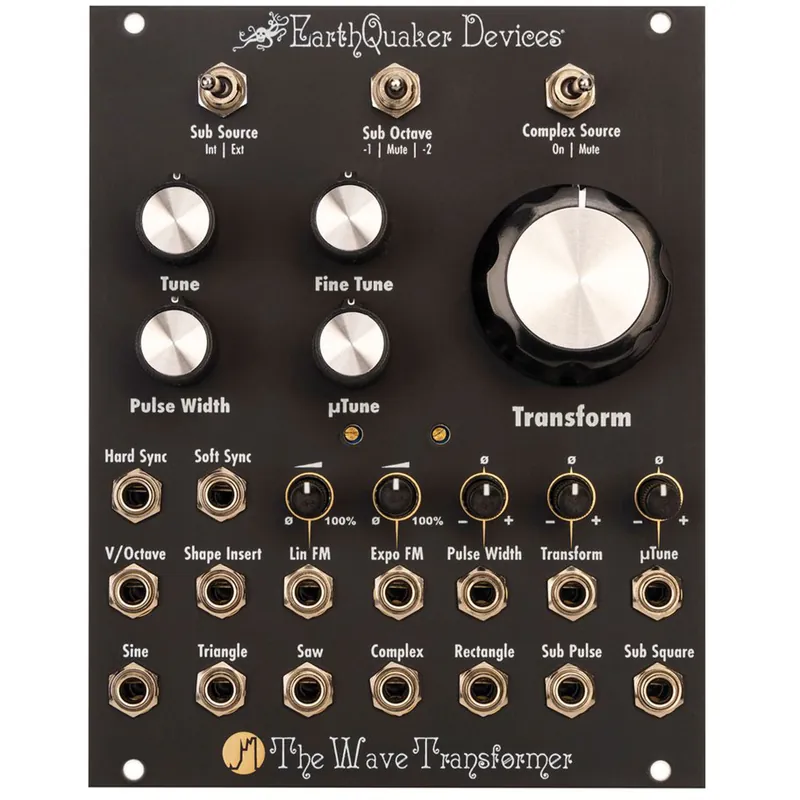

Hot Picks EarthQuaker Devices The Wave Transformer Eurorack Module

The Wave Transformer is an analog, vintage-voiced, voltage-controlled oscillator with over 8 octaves of accurate pitch tracking. It has 7 simultaneous wave outputs, including a unique Complex output.

The Transform control morphs from a basic waveform through many strange iterations into a complex, gnarled mass of audio mutations at the Complex output. You can yield countless variations on these permutations by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM. Additionally, you can mute the source waveform to use the circuit as a harmonic gate/VCA, rendering The Wave Transformer a voice unto itself. If that is not enough, there is a Shape Insertthat allows you to transform external oscillations and modular-level audio sources.

Panel Controls

• Sub Source: Selects either the internal oscillator or the signal patched into the Shape Insert jack for use in generating sub octaves. This control affects the Complex, Sub Pulse and Sub Squareoutputs. Leave this set to “INT” unless you are tracking an external source.
• Sub Octave: Selects between 1 octave down, 2 octaves down or muting the sub octaves. This control affects the Complexand Sub Squareoutputs. The Sub Pulseoutput is unaffected by this control, as it is fixed to 1 octave down.
• Complex Source: Selects between muting and unmuting the source wave for the Complexoutput.
• Tune: Course control of the pitch of the oscillator, spanning approximately 7 octaves.
• Fine Tune: Fine control of the pitch of the oscillator, spanning a little more than 1 octave.
• µTune (Micro Tune): Ultrafine control of the oscillator, spanning approximately 25 cents.
• Pulse Width: Varies the Pulse Width of the Rectangleoutput between 0%–100%. At 0% or 100% Pulse Width, the Rectangle output is silent.
• Transform: Morphs the Complexoutput from a triangle wave through multiple iterations into a strange and harmonically complex waveform, using an asymmetrical multi-differential audio transmutation circuit.
